Technical Specifications
Technical details of the AMBIAGRO System.
A system built to operate in the field

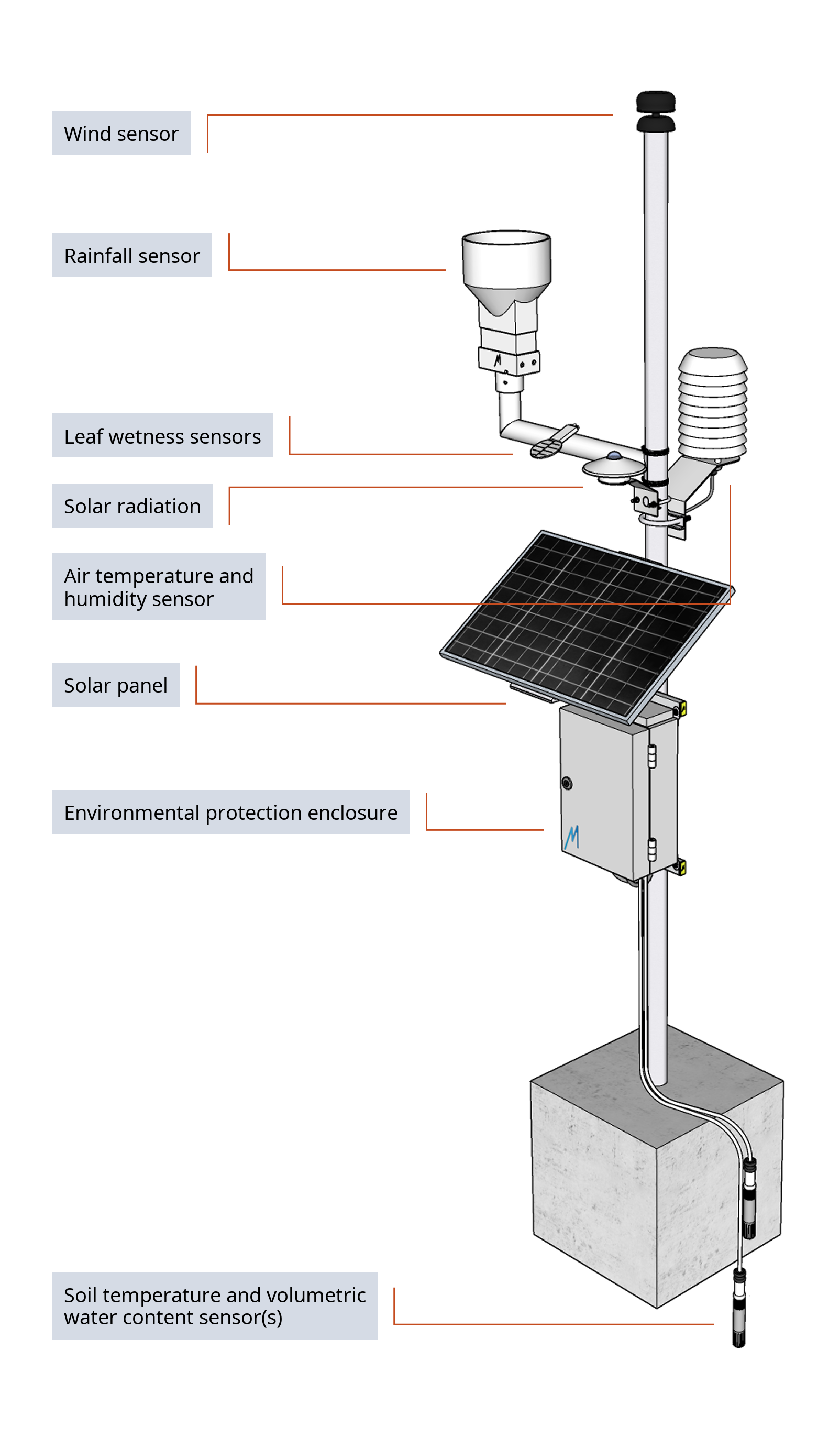

The AMBIAGRO system is designed to be installed and operated directly in the field, with full energy autonomy and built-in remote communication.
- Rainfall sensor
- Solar radiation sensor
- Wind speed and direction sensor
- Air temperature and humidity sensor
- Soil temperature and moisture sensor
- Leaf wetness sensor
- Solar panel and backup battery
- Datalogger with GSM/GPRS communication
| Parameter | Value/Description |
|---|---|
| Connectivity | Integrated GSM/GPRS modem (2G/3G/4G) |
| Power supply | Solar panel and backup battery |
| Typical Operating Temperature | -20°C to +70°C |
| IP Rating | IP67 or higher |
| Data Acquisition Interval | From seconds to minutes |
| Data Logging Interval | From seconds to hours |
| Accessibility | Web platform with access credentials, anywhere, any time |
| Monitoring | Chart or table, with grouped data |
| Data Export | Configurable, scheduled reports (CSV, PDF) |
| Alarm Notification | Configurable combination of logical conditions across the monitored parameters |
Standard Sensor Specifications
Measurement parameters, operating range and accuracy of the sensors included in the standard configuration.
Senseca PYRASense03
General characteristics
- Measuring range: -200 to 4000 W/m²
- Spectral response: 300 to 2800 nm
- "Class C" sensor, ISO 9060:2018
Pronamic Professional
General characteristics
- Collector area: 200 cm²
- Resolution: 0.1 mm or 0.2 mm
- Accuracy: ± 2%
Calypso
General characteristics
Speed:
- Measuring range: 0.5 to 45 m/s
- Accuracy: ±0.1 m/s at 10 m/s
Direction:
- Measuring range: 0–359º
- Accuracy: ±1º
Senseca ENVIROsense
General characteristics
Atmospheric temperature:
- Measuring range: -40 to 80 ºC
- Resolution: 0.01 ºC
- Accuracy: ±0.1 ºC ± 0.1% of reading
Relative humidity:
- Measuring range: 0 to 100%
- Resolution: 0.01%
- Accuracy: <±2%
Note: Beyond direct measurement of the environmental parameters temperature and relative humidity, this sensor also provides derived parameters associated with air temperature and humidity — for example dew point and wet-bulb temperature, among others.
View Datasheet (PDF)
Truebner SMT100
General characteristics
Soil temperature:
- Measuring range: -40 to 80 ºC
- Resolution: 0.01 ºC
- Accuracy: ± 0.2 ºC
Soil water content (moisture), % by volume:
- Measuring range: 0 to 100%
- Precision: ±1%
Note: The soil sensor must be installed at the intended depths in accordance with the instructions in the manufacturer's manual supplied.
View Datasheet (PDF)
Senseca HD3901.5
General characteristics
- Measuring range: 0 to 100%
- Accuracy: ±5%
Note: The sensor monitors both leaf surfaces and the absolute humidity on each of them. The threshold distinguishing a dry leaf from a wet one is set in software.
View Datasheet (PDF)
Technical Documentation
Access the complete AMBIAGRO system datasheet, with detailed specifications for every component and communication protocol.
View DatasheetIntegration with the AmbiDS platform
Every AMBIAGRO station is configured and natively integrated with the AmbiDS centralised management platform, ready to use from day one.
